Capabilities

We specialize in Wire EDM, CNC Mill, CNC Lathe, Screw Machine, and Water Jet Cutting, H&H has the technology to meet a wide variety of your machining needs. Operating 24 hours a day, our dedicated staff is able to quickly meet your delivery needs.

Wire EDM

With our Wire EDM capabilities, we are able to achieve tolerances within +/- .0002 and the ability to cut tapers up to 30°. Wire diameters include .004”-.012”.

  • 1 – AgieCharmilles 640CCS:
    Submerged max cutting travel X31.5 x Y21.65 x Z20.07 height travel with 30° taper. Max workpiece 51.2 x 39.4 x 20.1
  • 2 – Charmilles Robofil 440:
    Submerged wire EDM with autothreader. 21.5”x13.75×16” travel and 30° taper.
  • 2 – Charmilles Robofil 240CC:
    Submerged wire EDM with autothreader. 13.77 x 8.66 x 8.66 travel and 30° taper.
  • 1 – Charmilles Robofil 240:
    Submerged wire EDM with autothreader. 13.77 x 8.66 x 8.66 travel and 30° taper.
  • 1- AgieCharmilles CUT 300 ms:
    Submerged Wire EDM’s with autothreader. 21.65 x 13.77 x 15.75 cutting travel and 30° taper.
  • 1 – Charmilles HD30-CNC:
    EDM Drilling machine
Wire EDM Profile
Wire EDM Front View
Wire EDM Products

CNC Mills

  • 1 – Mori Seiki NHX 5000 with RPP5:
    5 pallet system. Horizontal machining center with highest stability, precision and dynamics. 20,000 RPM with 1000 psi thru the spindle coolant, 180 tool, 28.7” x 28.7” x 34.6” travel
  • 2 – HAAS EC-400:
    Horizontal Machining Center; 20″ x 20″ x 20″, twin-pallet system, 30 hp vector drive, 12,000 rpm, 70+1 side-mount tool changer, Full 4th-Axis Rotary System, and rigid tapping, through spindle coolant, Renishaw Intuitive Probing System.
  • 2 – HAAS VF3SS:
    Super Speed Vertical Machining Center; 40″ x 20″ x 25″, 30 hp vector drive, 12,000 rpm, high-speed 24+1 side-mount tool changer, 1400 ipm rapids, rigid tapping, High-pressure through spindle coolant, Renishaw Intuitive Probing System. Equipped with tilting 4 rotation 5C 5-Axis rotary table
  • 1 – 2020 HAAS VF2SS:
    30.0” x 16.0” x 20.0” travel. 12000 rpm spindle.
  • 1- HAAS VF3:
    with 20”x40”x25” travel. 7500 RPM Spindle, 20 position tool rack with HAAS Rotary Table – 8.27” Diameter capacity with tailstock.
  • 1 – HAAS VF5/50XT:
    26”x60”x25” travel, 50 Taper, High-pressure through spindle coolant 1000PSI, 7500 rpm, equipped with Renishaw Probe.
  • 1 – Mori Seiki SH-40:
    HORIZONTAL Mill – 2 Pallets, 12,000 RPM spindle, 40 position tool rack.
H&H Precision Wire CNC Mills
CNC Mills H&H Precision Wire
CNC Mill Products H&H Precision Wire

CNC Lathes

  • 1 – Mori Seiki NLX 2500/700:
    18.1” max turn capacity, 3.1” max bar capacity. 4 axis with sub spindle with Y Axis, full C axis and live milling on both spindles.
  • 1 – Mori Seiki NTX 1000/SZ:
    Bar Capacity 2.5″, Swing 14.57″, Turning Diameter 14.57″, Spindle Speed 5,000 RPM, Distance Between Centers 35″, Maximum Turning Length 16.6″, Live Tooling C-Axis Live Tooling, Y-Axis, Tool Spindle 12,000 RPM
  • 1 – Mori Seiki SL2500:
    4 axis with sub spindle with Y Axis, full C axis and live milling on both spindles. 3” bar capacity.
  • 1 – HAAS ST20 SSY:
    CNC Lathe w/Y Axis; 10″ x 21″ max capacity, 31.75 swing, ±2.00″ Y-axis travel, 30 hp vector drive, 5000 rpm, high-torque live tooling w/C axis and bar feeder
  • 1-HAAS TL25:
    With sub spindle. Full C axis on main spindle. 16” Chuck on main. 4” bar capacity.
  • 1 – Nakamura-Tome Slant 1:
    With 12” diameter capacity and 12 position turret.
  • 1 – Mori Seiki SL-15:
    With tool pre-setter and parts catcher.
  • 1 – Storm 300:
    3.05” thru the spindle with 12” diameter capacity and 12 position turret. 20” turn length max
H&H Precision Wire CNC Lathes
CNC Lathes H&H Precision Wire

Screw Machines

  • 1 – STAR SR-20J:
    12′ bar feeder.
  • 1 – STAR SR-20R:
    12′ bar feeder.

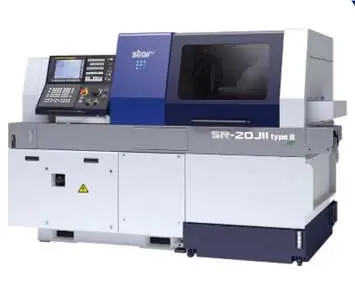

  • 1 – STAR SR-20JII Type B:
    12′ bar feeder.
Swiss Screw Machine

Water Jet

With our Water Jetting capabilities, we have the ability to easily cut an array of materials and thicknesses, from stone, metal, plastic and glass, to rubber, ceramics, composites, aluminum, tool steel, stainless steel, mild steel and titanium.

  • Techni Waterjet TJ 3000 X2:
    5′ 3″ x10′ 6 of cutting travel. Accuracy of Motion .001″. Maximum Material thickness 6”. 60 Degree Beveling Capability – capable of producing parts with a true angle up to ± 60 deg with continuous rotation.
  • OMAX Model 2652:
    With TILTA-JET – X-Y Travel 26”x52” cutting travel. With the Tilt-A-Jet it allows for virtually zero taper with most materials.
Water Jet Products from H&H Precision Wire
Water Jetting

Other

Grinders
  • 1 – Okamoto 12x24DX: Auto Surface Grinder with 12″x24″ travel.
  • 1 – Mitsui Tech: Surface grinder with 6″x12″ of travel.
  • 1 – Rockwell: Surface grinder with 5″x10″ of travel.

Deburring

The sPINner deburring machine works best on small, precision parts, made from non-ferrous metals including: aluminum, brass, copper, stainless steel, and titanium. The deburring process will not affect tolerances or damage delicate parts. Vibratory Tumblers


Manual Machines
  • Bridgeport Vertical Mill: 9″x42″ travel.
  • Lagun VF-2 Vertical Mill: 10″x50″ travel.
  • Lagun Engine Lathe: 14″x60″
  • Cosen C-320NC Automatic Bandsaw: Rectangular Capacity (HxW) 12.6″x15″
  • MSC Vertical Band Saw: 14″x20″

Inspection Equipment
  • Giddings & Lewis Sheffield Cordax RS 25 Coordinate Measuring Machine
  • Benchmark 16 Optical Comparator w/Quadra Check 2000 Digital Readout
  • Surface Plates with Mitutoyo Electronic Height Gages
  • Gage Pins ranging from .008” to 1.000” in .0005” increments
  • Full Line of Mitutoyo BoreMics
  • Full Line of Mitutoyo Micrometers with .0001” increments
  • Range of DELTRONIC TENTH PINS
